Thomas & Betts Thomas & Betts BLB-8


Description

Industry Description

3 INCH EMT LB CONDUIT BODY

Modified Industry Description

3-IN LB EMT BODY W/CVR

AD Description

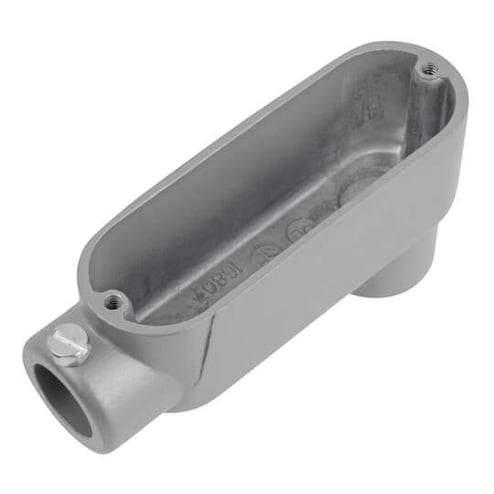

Red Dot® BLB-8 B Series Type LB Conduit Body, 3 in Hub, 190 cu-in Capacity, Die Cast Aluminum

Vendor Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Specifications

Application
For use with EMT conduit
Brand Name
Thomas & Betts
Configuration
LB
Country of Origin
IN
Form
Mogul
Hub_Size
3
Material
Die Cast Aluminum
Special Features

  • 90 deg hub location
  • Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
  • Back access opening
  • Clean cover edges provide good gasket sealing
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Copper-free aluminum provides increased corrosion-resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Precision NPT threaded and set screw hubs allow trouble-free field installation
  • Provide access for pulling, splicing and maintenance
  • Retained deep slotted stainless steel cover screws for faster installation
  • Retained stainless steel cover screws
  • Smooth throats for easy wire pulling
  • Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
Standard
E 28688
Sub_Brand
Red Dot
Trade_Size
3
Type
Type LB
Width_2
6.7500
