Ocal Ocal LB47-G


Description

Industry Description

PVC Coated Conduit Body, LB Shape, Form 7, Size 1-1/4 Inch/35 Metric, Iron, Dark Gray

Modified Industry Description

1 1/4 IN PVC COATED LB CONDUIT BODY FORM 7 DARK GRAY

AD Description

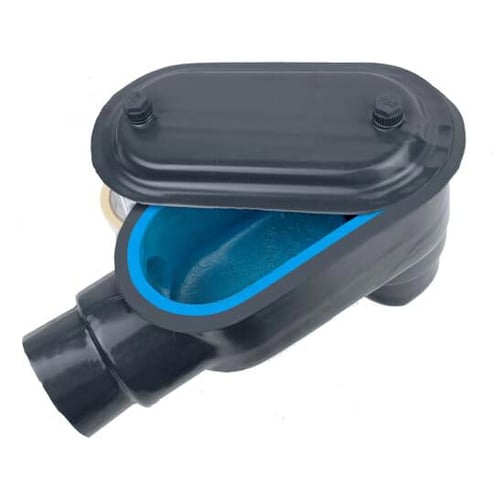

Ocal® OCAL-BLUE® LB47-G Type LB Conduit Body With Cover, 1-1/4 in Hub, Form 7 Form, 18.8 cu-in Capacity, Iron, PVC Coated

Vendor Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Specifications

Application
Act as pull outlets for conductors being installed
Brand Name
Ocal
Color
Dark Gray
Configuration
LB
Country of Origin
US
Finish
PVC Coated
Form
7
Hub_Size
1-1/4
Material
Iron
Special Features

  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Connect conduit sections
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Make 90 deg bends in conduit runs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Ocal® Pressure sealing sleeves on all threaded hubs
  • Provide for access to conductors for maintenance and future system changes
  • Provide openings for making splices and taps in conductors
  • Provide taps for branch conduit runs
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • The flat back also keeps the body more stable during installation, requiring fewer conduit straps
Standard
E 2969
Sub_Brand
Ocal
Trade_Size
1-1/4
Type
Type LB
Width_2
13.0000
