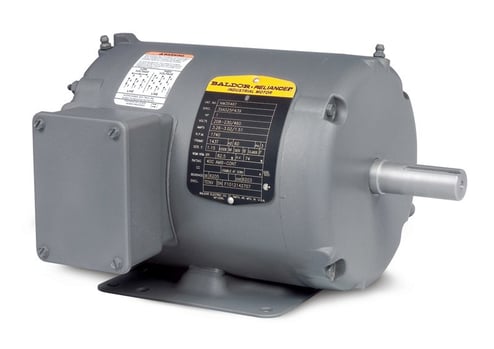

Baldor Baldor NM3542
Baldor NM3542
Kirby Risk #: 1865800
UPC: 00781568147863, 781568147863, 78156814786
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Modified Industry Description
.75HP 1750RPM 3PH 60HZ 56 3514M TENV F1
Specifications
| Amperage Rating |
1.1
|
|---|---|
| Application |
General Purpose
|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Efficiency |
78.5
|
| Enclosure |
TENV
|
| Frame |
56
|
| Frequency_Rating |
60
|
| Full_Load_Current |
1.4/2.8
|
| Horsepower |
3/4
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
56
|
| Phase |
3
|
| Power_Factor |
0.66
|
| Rotation |
Reversible
|
| RPM |
1750
|
| Service_Factor |
1.25
|
| Special Features |
.75HP,1750RPM,3PH,60HZ,56,3514M,TENV,F1
|
| Speed_Rating |
1,750 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
230/460
|
