3M 3M 8460


Description

Industry Description

3M™ 8459 Cold Shrink Shield Adapter Kit is designed to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and UniShield® power cables. It is rated for 5 to 8 kV and 600 amps cables. This kit offers resistance to acids, alkalis, ozone, ultraviolet light and fungus.

Modified Industry Description

SHIELD ADPTR KIT

AD Description

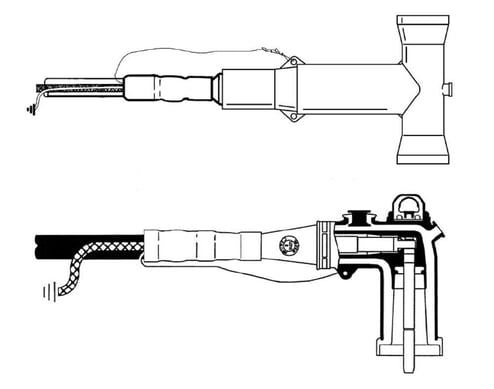

3M™ 054007-41458 Shrink Shield Adapter Kit, 8 Pieces, For Use With 200 amp Load Break Elbows and up to 600 amp Dead Front Modulars, Black

Vendor Description

The Shield Adapter Kit design provides a fault current capacity of 600 Amps on 15-35 kV class cables. These cold shrink kits require no heat, special tools or special skills to install. The cold shrink kits come complete with all necessary components (except the cable accessory) and are installed in a few simple steps. We've even attached a "bleeder wire" to the ground strap eliminating the need for additional wire and connectors. Each kit contains enough material to ground one cable accessory.

Specifications

Brand Name
3M
Color
Black
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK SHIELD ADAPTER KIT 8460, 0.83-1.64 IN (21,1-41,6 MM) JACKET O.D. RANGE
Material
Cold Shrink
Number_Of_Pieces
8
Package_Quantity
3
Size
1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG
Special Features

  • (5/8 kV) 1/0 AWG-350 kcmil (50-200 sq-mm), (35 kV) 2-1/0 AWG (35-60 sq-mm), (15 kV) 2 AWG-250 kcmil (35-150 sq-mm), (25 kV) 2 AWG-250 kcmil (35-150 sq-mm) cable size by voltage
  • Accommodates a wide range of cable sizes
  • Compatible with cable jackets and semi-conducting insulation shields
  • No torch or heat required
  • Resists fungus acids and alkalies, ozone and ultraviolet light
  • Seals tight, retains its resiliency and pressure even after years of aging and exposure
  • Unique integrated ground braid/bleeder wire composite, Adapter Bleeder wire (14 AWG tinned solid copper (Cu) conductor) is soldered to the ground braid making installation quick and simple
  • Water resistant
Standard
ANSI C119-1
Sub_Brand
3M
Type
Tape, Wire, Unishield
Voltage Rating
5/8vK, 15kV, 25/28vK, 35kV
