Panduit Panduit LCC250-38D-X

Name: Panduit LCC250-38D-X
Brand: Panduit
SKU: 1860788
Price: 24.69 USD
Availability: InStock

Panduit LCC250-38D-X

Kirby Risk #: 1860788

UPC: 074983382903, 07498338290, 00074983382903, 30074983382904

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

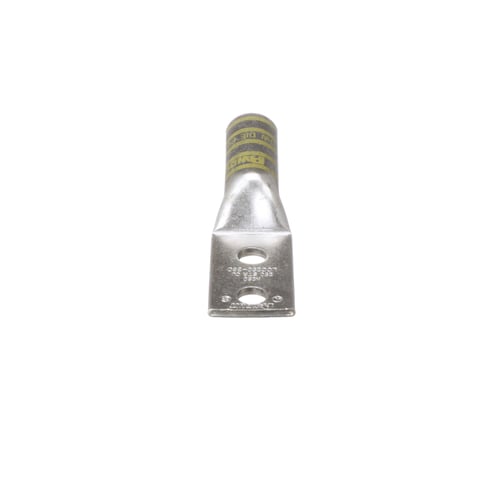

Two-hole, long barrel lug, 250 kcmil cable, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

250 MCM 3/8 IN 2 HOLE LONG BARREL CU COMP LUG

AD Description

Panduit® Pan-Lug™ LCC250-38D-X 2-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Yellow
Conductor Material	Copper
Conductor Size	250
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 11/16
Number_Of_Holes	2
Package_Quantity	1
Size	250 kcmil Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments For use with stranded copper conductors Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Stud_Size	3/8
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
