Industry Description

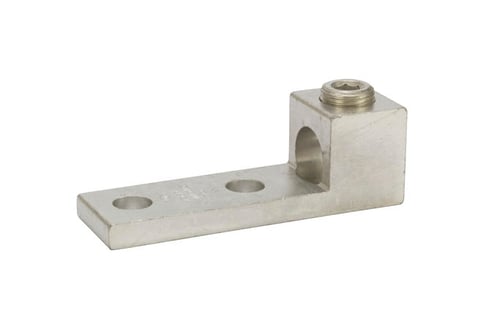

1 Port Panelboard Lug 600 MCM - 2 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Modified Industry Description
Nema Panel Lug 600 MCM-2 AWG
AD Description
NSI 600L2 Dual Rated Panelboard Lug, 2 AWG to 600 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Copper and Aluminum Conductors
