Intermatic Intermatic LC4535LA

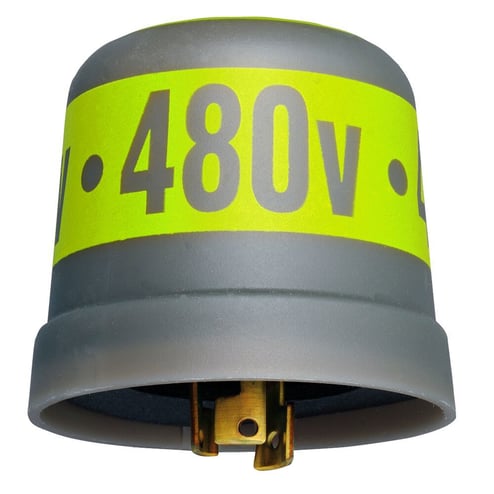

Intermatic LC4535LA
Kirby Risk #: 1857269
UPC: 50078275002680, 07827500268, 078275002685, 00078275002685
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The 480V 50/60Hz 1000W "T" W/LTNG LOCK The LC4500 Series Photo Controls feature low cost locking-type mounting, and thermal-type controls for street lighting and other applications requiring a twist and lock type plug connection. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and polypropylene case to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes.
Modified Industry Description
1000W 480V - T PHOTOCELL W/ LIGHTING LOCK
AD Description
Intermatic® LC4535LA LC4500 Locking Mounting Thermal Photocontrol, 480 VAC, 7200 W Tungsten, 4000 VA Ballast, Twist-Lock Mount, Polypropylene
Vendor Description
The LC4500 series photo controls feature low cost locking-type mounting and thermal type controls for street lighting and other applications requiring a twist and lock type plug connection. Thermal type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal type controls feature a cadmium sulfide photocell and polypropylene case to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes.
Specifications
| Amperage Rating |
15 A
|
|---|---|
| Application |
Dusk to Dawn cntrl.
|
| Ballast_Power_Rating |
4000
|
| Brand Name |
Intermatic
|
| Color |
Gray/Yellow
|
| Connection |
Turn Lock
|
| Country of Origin |
MX
|
| Enclosure |
Plastic Outdoor
|
| Environmental_Conditions |
-20 to 104 deg F
|
| Frequency_Rating |
50/60 Hz
|
| Material |
Polypropylene
|
| Mounting |
Locking Type
|
| Mounting_Type |
Twistlock
|
| Operating_Cycles |
3650
|
| Operating_Temperature |
(-)40 - 158F
|
| Output |
7200 Watts Tungsten 4000 Watt Ballast
|
| Power_Consumption |
1 watt Max.
|
| Sensitivity |
0.5 FC On/15 FC Off
|
| Sensor |
Cad. Sulft.
|
| Size |
2-3/4x3.0 DiaInches
|
| Source |
Automatic Switching
|
| Special Features |
|
| Standard |
ANSI C136.10
|
| Sub_Brand |
Intermatic
|
| Supply_Voltage |
480
|
| Timing_Range |
30 to 90 s
|
| Tungsten_Current_Rating |
15
|
| Tungsten_Watts |
7200
|
| Type |
Locking Mounting
|
| Voltage Rating |
480 VAC
|
