Hubbell Hubbell HBL2623VY
Hubbell HBL2623VY
Kirby Risk #: 1854085
UPC: 783585236049, 78358523604, 00783585236049
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise,Female Connector Body, 30A 250V, 2-Pole3-Wire Grounding, L6-30R, ScrewTerminal, Yellow
Modified Industry Description
LOCKING FEMALE CONN NEMA L6-30R
AD Description

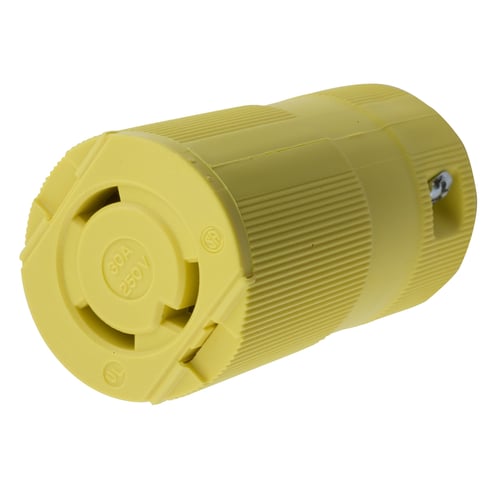

Hubbell® Twist-Lock® Valise® HBL2623VY Grounding Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L6-30R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding
|
| Voltage Rating |
250
|
