3M 3M 564
3M 564
Kirby Risk #: 1851302
UPC: 054007061182, 00054007061182, 05400706118
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

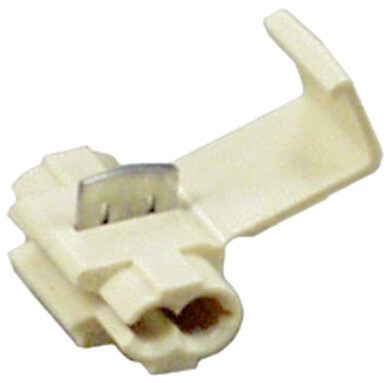

3M™ Scotchlok™ Insulation Displacement Connector 564 is a double run connector for parallel splicing. It electrically connects two run (through) wires while insulating the connection. Polypropylene insulated and self stripping.
Modified Industry Description
BULK SELF-STRIP TAP CON
AD Description
Scotchlok™ 054007-06118 Electrical IDC, 18 to 14 AWG
Vendor Description
Use this 3M™ Scotchlok™ 564 IDC Double Run Electrical Connector for parallel splicing when you need a durable product that insulates the connection. It works with double run or tap connection types, and it’s made for use with applications that are in dry environments. The maximum insulation O.D. of this connector is 0.145 in. It’s compatible with E-9BM Crimping Tool, which is used to crimp connectors with its strong adjustable metal jaws. The maximum recommended voltage rating for this connector is 32V; it accommodates wire gauge sizes ranging from 18 to 14 AWG. This product is RoHS 2011/65/EU Compliant, so you can trust in its quality.
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
White
|
| Conductor Size |
18 - 14 AWG
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 564-BULK, DOUBLE RUN
|
| Package_Quantity |
5000
|
| Sub_Brand |
3M
|
| Temperature_Rating |
194 deg F
|
| Type |
Insulation Displacement
|
| Voltage Rating |
32 Vdc
|
