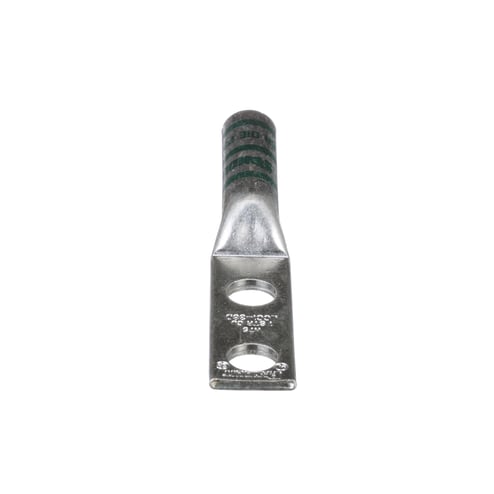

Panduit Panduit LCC1-38D-E

Name: Panduit LCC1-38D-E
Brand: Panduit
SKU: 1836944
Price: 16.53 USD
Availability: InStock

Panduit LCC1-38D-E

Kirby Risk #: 1836944

UPC: 30074983382430, 074983382439, 07498338243, 00074983382439

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, long barrel lug, #1 AWG wire, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

Copper Compression Lug, 2 Hole, #1

AD Description

Panduit® Pan-Lug™ LCC1-38D-E 2-Hole Compression Lug, 1 AWG Copper Conductor, Die Code: P37, 3/8 in Stud, Tin Plated Copper

Brand Name	Panduit
Cable_Size	35
Color	Green
Conductor Material	Copper
Conductor Size	1
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 7/16
Number_Of_Holes	2
Package_Quantity	1
Size	#1 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments For use with stranded copper conductors Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Stud_Size	3/8
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
