Killark KILLARK GECTT-3


Description

Industry Description

GEC SERIES FITTINGS - ALUMINUM - T TYPE OUTLET BODY - HUB SIZE 1 IN -VOLUME 19.0 CU IN

Modified Industry Description

1-IN EX-PRF COND BODY

AD Description

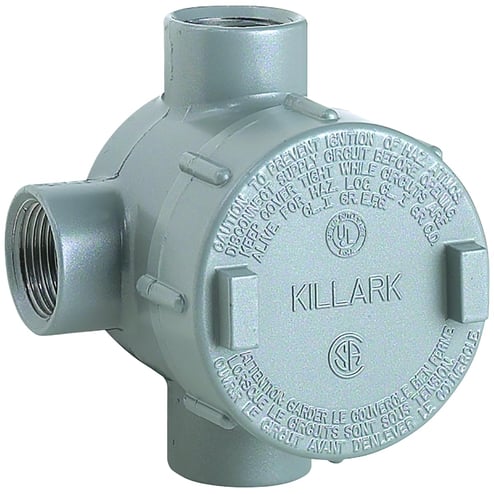

Killark® GECTT-3 Conduit Outlet Body, Style T Body, 1 in Hub, Form 1 Form, 19 cu-in Capacity, Copper Free Aluminum

Vendor Description

Killark® has become a global provider of harsh and hazardous location products. The Killark® range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Specifications

Application
GE Series conduit boxes are installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit; act as pull and splice boxes; interconnect lengths of conduit; change conduit direction; and provide access to conductors for
Brand Name
KILLARK
Cable_Entry
1" hub
Color
Gray
Country of Origin
MX
Cubic_Capacity
19 cu. in.
Finish
Powder Coated
Hub_Size
1
Material
Aluminum
Size
4-1/2" H x 5-5/16" W x 3-5/8" D
Special Features

  • Act as pull and splice boxes, interconnect lengths of conduit, change conduit direction
  • Copper free aluminum (less than 4/10 of 1%)
  • Electrostatically applied powder coated
  • External cover threads on body protecting conductors from damage during pulling
  • GE conduit outlet boxes have GEC series has water shedding cover suitable for wet locations when mounted in upright position
  • No pinching of conductors during cover installation
Standard
UL, CSA
Sub_Brand
KILLARK
Type
Type T
Width_2
6.0000
Width_4
6.0000
