Appleton Appleton EXLK-336


Description

Industry Description

UNILETS Flexible Coupling, Trade Size: 1 IN, Outside Diameter: 2.06 IN, Bending Radius: 14 IN, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union, Finish: Natural, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certifed, Class I, Division 1 And 2 and Class II, Division 1 And 2, Suitable for Class I, Groups C, D, Class II, Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit And IMC

Modified Industry Description

1X36 FLEX CPLG

AD Description

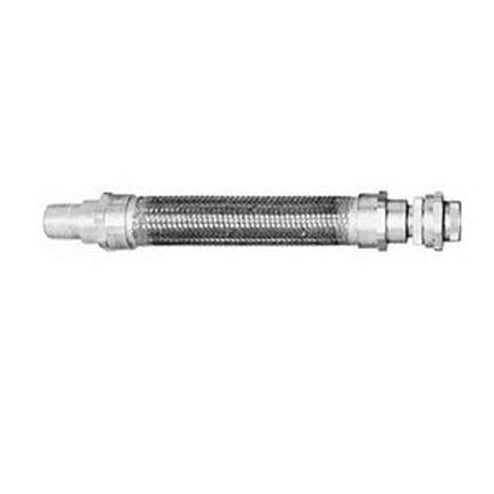

Appleton® UNILETS® EXLK-336 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 1 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural

Vendor Description

For explosionproof and dust-ignitionproof protection wherever lengths of conduit are joined or connected to an enclosure, count on the quality materials and construction of hazardous location conduit fittings from Appleton® Group. We offer sizes, styles and materials to meet any requirement, along with innovative products such as swivel elbows and flexible couplings to simplify challenging installations. We supply the close-up plugs, reducers and other fittings needed to complete any hazardous location installation of threaded rigid metal conduit or IMC.

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Brand Name
Appleton
Connection
Female Threaded
Country of Origin
MX
Finish
Natural
Flexibility
Rigid And IMC
Material
Brass/Bronze
Outside_Diameter
2.06
Radius
14 Bending
Special Features

  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Electrical conductivity equal to rigid conduit on a similar length basis - no bonding jumper required
  • Female end fitting with union at one end and a female end fitting with a removable male nipple at the other end
  • Heavy duty design resists mechanical abuse
  • Interior insulating liner protects conductors from abrasion under vibrating conditions
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certi?ed, Class I, Division 1 And 2 and Class II, Division 1 And 2, Suitable for Class I, Groups C, D; Class II, Groups E, F, G; Class III
Sub_Brand
Appleton
Trade_Size
1
Type
Dust-Ignitionproof Explosionproof Flexible Watertight
