Panduit Panduit ABM4H-AT-L


Description

Industry Description

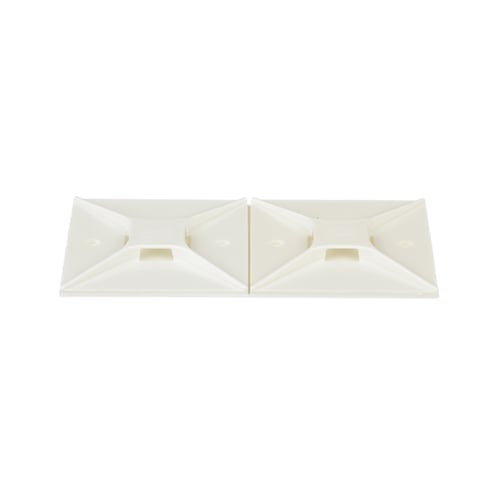

The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 2.0" long x 2.0" wide (50.8 x 50.8 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. It is designed for indoor, high-temperature environments and comes in packages of 50.

Modified Industry Description

Cable Tie Mount High Temp Adhesive Back 2 IN x 2 IN White

AD Description

Panduit® ABM4H-AT-L Cable Tie Mount, 4-Way, Acrylic Adhesive Tape Mount, 0.35 in W Tie, Nylon, White

Vendor Description

Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit® Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.

Specifications

Application
Used with Miniature, Intermediate, and Standard Cables Ties
Brand Name
Panduit
Cable_Size
NA
Cable_Type
Cable Tie Mount
Color
White
Country of Origin
USA
Insulation
Polyamide (PA)
Material
Nylon
Mount_Size
2.00
Operating_Temperature
-76°F (-60°C) - 180°F (82°C)
Package_Quantity
50
Screw_Holes
#6 (M3)
Special Features

  • Allow cable tie entry from all four sides
  • For use with miniature, intermediate, standard, light-heavy, heavy and miniature Tak-Ty® hook and loop ties
  • Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
  • Rubber-based adhesive provides a strong and reliable bond
Standard
CE Compliant, UL Recognized: E136577, RoHS Compliant
Sub_Brand
Panduit
Type
Adhesive Backed
