3M 3M FP-301-1/2


Description

Industry Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Modified Industry Description

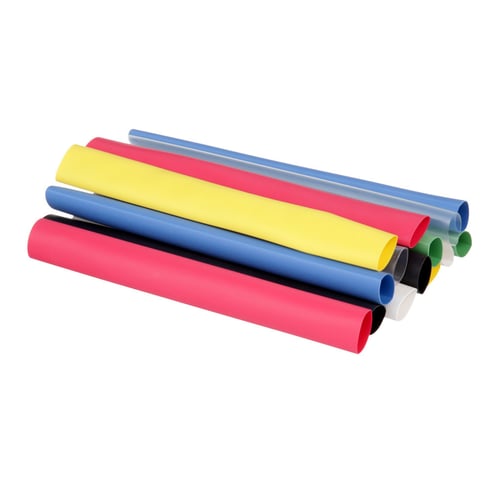

1/2 IN - 7 COLOR - HEAT SHRINK TUBING PACK, 14 PCS/PK

Specifications

Brand Name
3M
Continuous_Operating_Temperature
-67 degrees to 275 degrees
Country of Origin
US
Dielectric_Strength
900
Flammability_Rating
Pass
Heat_Aging
Elongation 175%
Heat_Shock
No dripping, clowing, cracking, passes mandrel wrap test
Inside_Diameter
1/2
Label_Description
3M(TM) HEAT SHRINK TUBING ASSORTMENT PACK FP-301-1/2-ASSORT, 1/2 IN, 2 EACH OF 7 COLORS, 10 PER CASE
Low_Temperature_Flexibility
No Cracking
Minimum_Shrink_Temperature
212 degrees
Outside_Diameter
0.5
Package_Quantity
10
Shrink_Ratio
2 to 1
Special Features

  • -67 to 275 deg operating temperature
  • 0.20% water absorption
  • 0.25 in ID
  • 10 years shelf life from date of manufacture
  • 10^15 ohm-cm volume resistivity
  • 2 each of 7 colors
  • 2400 psi tensile strength
  • 900 V/mil dielectric strength
  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Flame retardant tubing is rated for 600 VAC applications
  • Low temperature flexibility, no cracking
  • Made of flexible polyolefin
  • No dripping, flowing, cracking heat shock
  • Offers shrink fit protection and strain relief of wires, solder joints, terminals and connections
Standard
UL, CSA, ABS
Sub_Brand
3M
Thickness
0.025
Type
Single (Thin) Wall
Volume_Resistivity
10(15) ohm/cm
