Panduit Panduit LCAF1/0-38-X

Name: Panduit LCAF1/0-38-X
Brand: Panduit
SKU: 1831677
Price: 11.90 USD
Availability: InStock

Panduit LCAF1/0-38-X

Kirby Risk #: 1831677

UPC: 00074983557714, 07498355771, 30074983557715, 074983557714

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-Hole, flared barrel, 1/0 AWG wire, 3/8 stud hole.

Modified Industry Description

Copper Compression Lug, 1 Hole, 1/0

AD Description

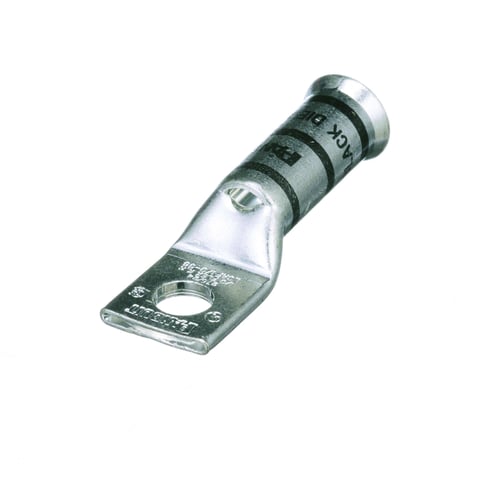

Panduit® Pan-Lug™ LCAF1/0-38-X 1-Hole Compression Lug, 1/0 AWG Class K, M and DLO Copper Conductor, Die Code: P45, 3/8 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Black
Conductor Material	Copper
Conductor Size	1/0 AWG Class K, M and DLO
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 7/16
Number_Of_Holes	1
Package_Quantity	1
Size	1/0 Class K and M and DLO
Special Features	Can be used with flex conductor class K, M and diesel locomotive Color-coded bands for proper die selection and crimp placement Flared entry prevents bent back strands when inserting fine strand conductor into barrel Inspection window to assure complete conductor insertion Tin-plated to inhibit corrosion
Standard	UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Stud_Size	3/8
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
