Appleton Appleton WSM250


Description

Industry Description

Features:2 Gang, Hub Size 1/2 IN, With Closure Plugs, Ground Screw And Mounting Lugs, Number Of Outlet:3, Material:Die Cast Metal, Size:4.5625 X 2 X 4.27IN, Color:Grey, Cubic Capacity:30.5CI

Modified Industry Description

2 Gang Weatherproof Outlet Box and Extension, 2 IN Deep, 1/2 IN Hubs

AD Description

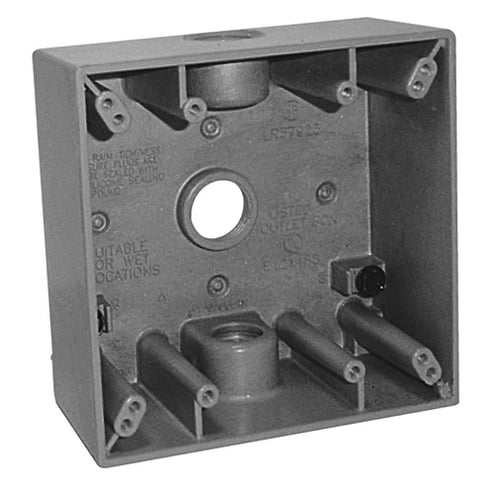

Appleton® ETP™ WSM250 Weatherproof Outlet Box, Die Cast Aluminum, 30.2 cu-in, 2 Gangs, 3 Outlets, 4.52 in H x 4.52 in W x 2.2 in D

Vendor Description

Appleton™ and O-Z/Gedney™ one-and two-gang metallic weatherproof outlet boxes, extension and covers are designed for branch circuit wiring in wet, damp or dry locations. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. The continuous, seamless die cast construction prevents entry of dirt, dust and moisture. A polyester powder coating provides weatherproof durability. Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry.

Specifications

Brand Name
Appleton
Cable_Entry
3
Color
Gray
Country of Origin
IN
Cubic_Capacity
30.2CU-IN
Finish
Polyester Powder Coated
Hub_Size
1/2
Knockouts
3
Material
Die Cast Aluminum
Number_Of_Gangs
2
Number_Of_Outlets
3
Size
4.52 x 4.52Inches
Special Features

  • Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
  • Complete installation instructions are provided with each item
  • Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
  • In use covers include patented inserts and comply with NEC requirements
  • Lamp holders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection
  • Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
  • Lockable covers and covers with integral devices are offered
  • Locking swivel knuckle on lamp holders permits positive lamp positioning and accurate directional aiming
  • Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
  • Mounting hardware and gasket provided with each cover
  • Photocells and lamp holders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
  • Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
  • Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
  • Smooth, accurately tapped hubs prevent wire abrasion
Standard
UL Standard 514A; UL Listed E2527; Nema FB-1, OS-1; CSA Standard C22.2 No. 18.1, cUL Listed E2527
Sub_Brand
Appleton
Type
Two Gang Weatherproof Outlet Boxes
