Appleton Appleton CG-1525
Appleton CG-1525
Kirby Risk #: 1823901
UPC: 0068785551571, 781381515719, 00781381515719, 78138151571
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Straight Liquidtight Strain Relief Connector, Size: 1/4 IN, Conductor Range: 0.156 - 0.25 IN, Material: Aluminum, Color: Orange/Gray Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 3/4 IN Height, Standard: Class I, Divi
Modified Industry Description
1/4 ALUM STR CORD CONN
AD Description

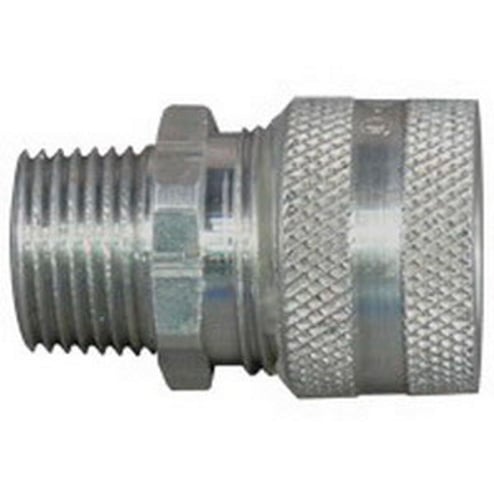

Appleton® CG-1525 Strain Relief Straight Cord Connector, 1/4 in Trade, 0.156 to 0.25 in Cable Openings, Aluminum, Natural
Vendor Description
Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.
Specifications
| Application |
For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
|
|---|---|
| Color |
Orange/Gray Label
|
| Connection |
Threaded Hub
|
| Country of Origin |
MX
|
| Dimensions |
3/4 in Dia
|
| Finish |
Natural
|
| Length1 |
5.2000
|
| Material |
Aluminum
|
| NEMA_Rating |
NEMA 3R
|
| Series |
CG Series
|
| Size |
1/4
|
| Special Features |
|
| Standard |
Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178
|
| Type |
Strain Relief
|
