3M 3M 7621-S-2-3G


Description

Industry Description

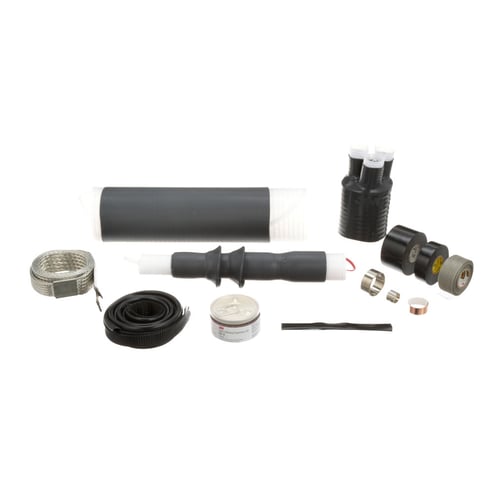

3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

Outdoor 3 Conductor Termination Kit Cables

AD Description

3M™ 054007-43680 7600-S-3G Cold Shrink QT-III Termination Kit With Ground Wire, 3 Pieces, For Use With Three Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Vendor Description

3M™ Cold Shrink QT-III 7600-S-3G Series Termination Kit includes a skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35 kV.

Specifications

Application
Outdoor
Brand Name
3M
Cable_Type
Tape Shield; UniShield(R); Wire Shield
Color
Black
Conductor Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QT-III, 3 CONDUCTOR TERMINATION KIT 7621-S-2-3G, 0.50-0.70 IN CABLE INSULATION O.D.
Material
Silicon Rubber
Number_Of_Pieces
3
Operating_Voltage
3
Package_Quantity
1
Special Features

  • 3 terminal
  • Conductor size by voltage (5 kV, 100%) 1 to 3/0 AWG, (5 kV, 133%) 2 to 2/0 AWG, (8 kV, 100%) 2 to 2/0 AWG, (8 kV, 133%) 2 to 2/0 AWG, (15 kV, 100%) 2 to 1 AWG
  • High dielectric constant material regulates the distribution of electric field stress
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
  • Provides a void free seal to tape shield, wire shield and UniShield® power cables
Standard
IEEE
Sub_Brand
3M
Type
Cold Shrink QT-III
Voltage Rating
5k/8k/15k
