Arlington Arlington 8081DBL


Description

Industry Description

Works on all siding types. Before or after siding is up, Mounting holes on inside of box. Textured paintable surface. NM cable connector provided. 6-1/2 x 10-1/2 mounting surface. Provides a .895 J-channel. 15-1/2 cubic inch box.

Modified Industry Description

SIDING BOX KIT

AD Description

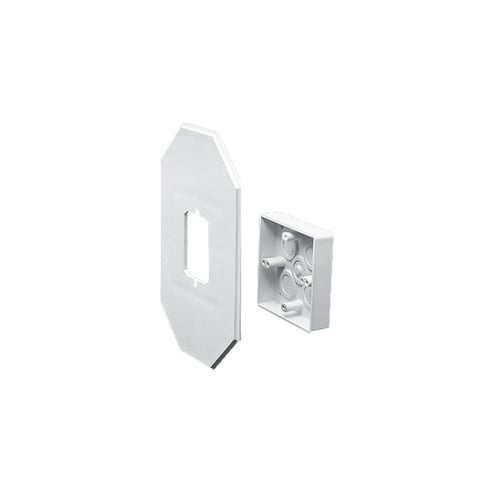

Arlington 8081DBL Double Siding Box Kit With Flange, Plastic, 15.5 cu-in Capacity, 1 Gang, 6.625 in L x 10.5 in W x 1.28 in H

Specifications

Application
For AC - MCI-A - HCF steel and aluminum cable
Brand Name
Arlington
Color
White
Country of Origin
USA
Finish
Textured/Painted
Material
Plastic
Mounting_Type
Surface
Number_Of_Gangs
1
Size
0
Special Features

  • 6-1/2 x 10-1/2 in mounting surface
  • Both the box and siding block are UV rated, textured and paintable to match any siding or trim
  • Can be installed before or after siding is up (new construction or retrofit
  • Deep design to accommodate GFCIs
  • Flanges may be removed for retrofit work
  • Mounting holes are provided on the inside of the box and along the flange
  • To mount this box with siding already up, simply score and break-off flanges before mounting
  • UV rated plastic for long outdoor life
  • Works on all siding types before or after the siding is up
Standard
UL and CSA
Sub_Brand
Arlington
