3M 3M FP-301-1-6


Description

Industry Description

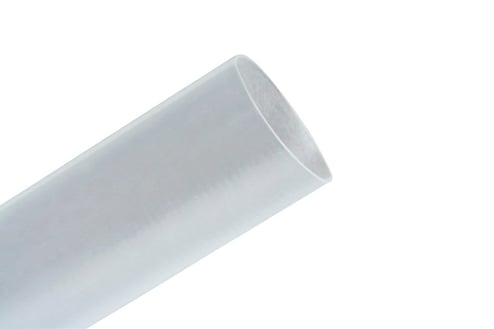

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Modified Industry Description

1 Thin Wall 6 in Clear

Specifications

Brand Name
3M
Color
Clear
Continuous_Operating_Temperature
-67 degrees to 275 degrees
Country of Origin
US
Dielectric_Strength
900
Flammability_Rating
Pass
Heat_Aging
Elongation 175%
Heat_Shock
No dripping, clowing, cracking, passes mandrel wrap test
Inside_Diameter
0.5
Label_Description
1, 2:1 THIN WALL, 6" CLEAR, 10 PCS/PK, 10 PKS
Low_Temperature_Flexibility
No Cracking
Material
Flexible Polyolefin
Minimum_Shrink_Temperature
212 degrees
Outside_Diameter
1
Package_Quantity
10
Shrink_Ratio
0.084027777777777701
Shrink_Temperature
212 deg F
Special Features

  • 10 years shelf life
  • 2400 psi tensile strength
  • 400% elongation
  • 900 V/mil dielectric strength
  • Designed to withstand elevated temperatures to 572 deg F for short periods of time
  • Mechanically tough, easily marked and resists cold flow
  • Offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications
Standard
UL, CSA, ABS
Sub_Brand
3M
Thickness
0.035
Type
Non-Corrosive Split Resistant
Voltage Rating
600 VAC
Volume_Resistivity
10(15) ohm/cm
