Hubbell Hubbell HBL360MI6W

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,60A 250V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Blue, Watertight

Modified Industry Description

60A 250V 2 POLE 3 WIRE FEMALE RECEPTACLE

AD Description

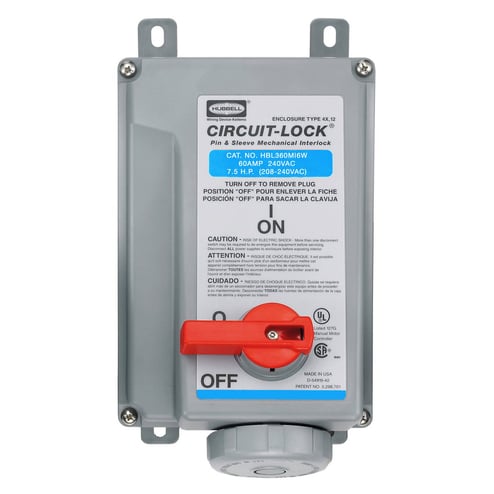

Wiring Device-Kellems Circuit-Lock® HBL360MI6W 1-Phase Female Single Standard Watertight Unfused Pin and Sleeve Mechanical Interlock, 250 VAC, 60 A, 2 Poles, 3 Wires

Vendor Description

Hubbell Circuit-Lock® pin and sleeve mechanical interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under load. Hubbell interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the ON position. It features a high visibility red handle that can be locked to meet OSHA lockout/tagout regulations and the enclosure door can be locked to prevent unauthorized access. The rugged, corrosion resistant type 4X Valox® enclosure features adjustable mounting feet for flexible installation, while the receptacle's spring loaded cover with gasket is dust tight and provides a watertight seal when turned and locked.
