Panduit Panduit LCD8-38D-L

Name: Panduit LCD8-38D-L
Brand: Panduit
SKU: 1814158
Price: 7.78 USD
Availability: InStock

Panduit LCD8-38D-L

Kirby Risk #: 1814158

UPC: 00074983383191, 074983383191, 07498338319, 30074983383192

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

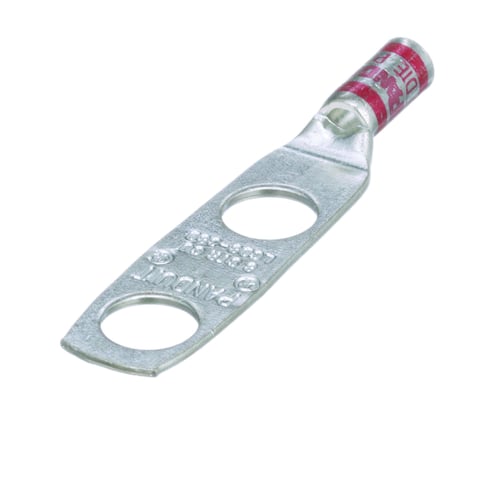

Two-hole, standard barrel lug with window, #8 AWG wire, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

8 AWG 3/8 IN 2 HOLE CU COMP LUG

AD Description

Panduit® Pan-Lug™ LCD8-38D-L 2-Hole Compression Lug, 8 AWG Copper Conductor, Die Code: P21, 3/8 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Red
Conductor Material	Copper
Conductor Size	8
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	5/8
Number_Of_Holes	2
Package_Quantity	1
Size	#8 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Stud_Size	3/8
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
