Panduit Panduit P18-6F-M

Name: Panduit P18-6F-M
Brand: Panduit
SKU: 1813218
Price: 0.19 USD
Availability: InStock

Panduit P18-6F-M

Kirby Risk #: 1813218

UPC: 00074983805013, 07498380501, 074983805013, 30074983805014

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

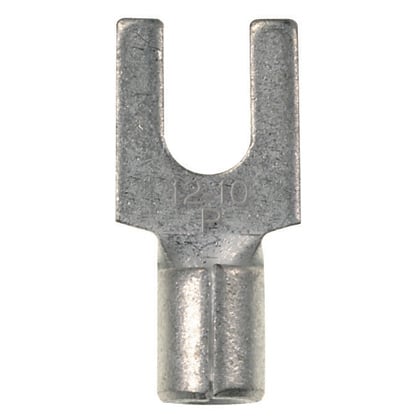

Fork Terminal, non-insulated, 22- 16 AWG, #6 stud size, bulk package.

Modified Industry Description

22 16 AWG 6 STUD NON INSULATED FORK

AD Description

Panduit® Pan-Term® P18-6F-M P Series Non-Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.63 in L, Brazed Seam Barrel, Copper, Metallic

Brand Name	Panduit
Color	Metallic
Connection	Standard
Conductor Size	22 to 16
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin Plated
Insulation	None
Material	Copper
Mounting	9/32
Package_Quantity	1000
Size	#6
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength
Standard	Yes - American Bureau of Shipping (ABS)
Stud_Size	#6
Sub_Brand	Panduit
Type	Non-Insulated
Voltage Rating	2000
