3M 3M 2228-1


Description

Industry Description

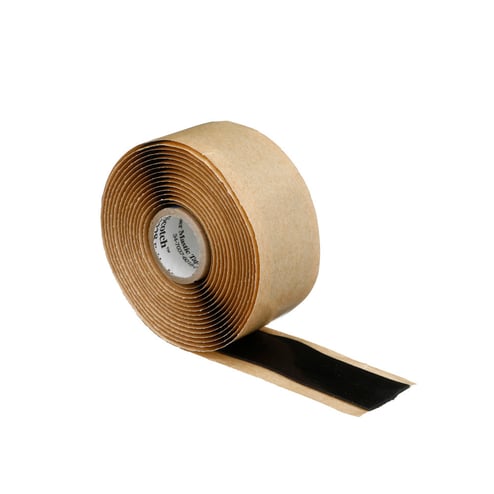

Scotch® Tape 2228 is a 65 mil thick, premium grade, highly conformable tape used to insulate, pad and seal bus bar and splice connections. It withstands temperatures up to 194 °F (90 °C).

Modified Industry Description

RUBBER MASTIC TAPE

AD Description

Scotch® 054007-50727 Premium Grade Self-Fusing Electrical Tape, 10 ft L x 1 in W, 65 mil THK, Rubber, Mastic Adhesive, Rubber Backing, Black

Vendor Description

Scotch® 2228 is a conformable self-fusing rubber electrical insulating and sealing tape. Scotch® 2228 consists of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature-stable mastic adhesive. The tape is made 65 mil (1.65 mm) THK for quick application build-up. It is designed for electrical insulating and moisture sealing applications. Scotch® 2228 can be used on copper or aluminum conductors rated at 90 deg C, with an emergency overload rating of 130 deg C. It offers excellent resistance to moisture and ultraviolet exposure and is intended for both indoor and weather exposed outdoor applications.

Specifications

Backing_Material
Ethlylene Propylene Rubber
Brand Name
3M
Country of Origin
US
Label_Description
SCOTCH(R) RUBBER MASTIC TAPE 2228-1X10FT, 1 IN X 10 FT (25 MM X 3,05 M), 12 PER CASE
Material
Mastic
Package_Quantity
12
Special Features

  • Compatible with solid dielectric cable insulations
  • Conformable for application over irregular surfaces
  • Electrical insulation and vibration padding for motor leads rated up to 1000 V
  • Excellent adhesion and sealing characteristics with copper, aluminum and power cable jacket materials
  • Excellent weather and moisture resistance
  • Flexible over a wide temperature range
  • Highly conformable, temperature stable mastic adhesive
  • Made of black, durable ethylene propylene rubber
  • Moisture seal for cable and wire connections
  • Moisture seal for ground wire and rod connections
  • Moisture seal for service drops
  • Primary electrical insulation for bus bar connections rated up to 35 kV (3M drawing 2047B-106)
  • Provides protection against UV rays with its ethylene propylene rubber backing
  • Self-fusing tape
  • Thick construction allows quick application build-up and padding over irregular connections
  • Used to insulate, pad and seal bus bar and splice connections
Sub_Brand
3M
Thickness
65 mil
Type
Sealing and Insulating Mastic
