Panduit Panduit LCCF2/0-12-X

Name: Panduit LCCF2/0-12-X
Brand: Panduit
SKU: 1808540
Price: 22.46 USD
Availability: InStock

Panduit LCCF2/0-12-X

Kirby Risk #: 1808540

UPC: 07498375313, 074983753130, 30074983753131, 00074983753130

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

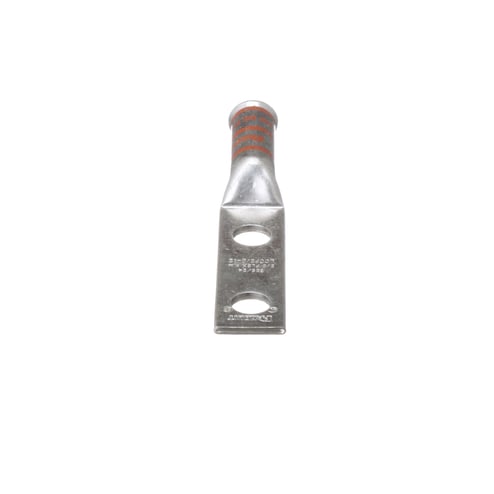

Two-hole, long flared barrel, 2/0 AWG wire, 1/2 stud hole, 1 3/4 hole spacing, NEMA hole sizes and spacing.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, 2/0

AD Description

Panduit® Pan-Lug™ LCCF2/0-12-X 2-Hole Compression Lug, 2/0 AWG Class K, M and DLO Copper Conductor, Die Code P50, 1/2 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Orange
Conductor Material	Copper
Conductor Size	2/0 AWG Class K, M and DLO
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 9/16
Number_Of_Holes	2
Package_Quantity	1
Size	2/0 Class K and M and DLO
Special Features	Can be used with flex conductor class K, M and diesel locomotive Color-coded barrels marked with Panduit die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Flared entry prevents bent back strands when inserting fine strand conductor into barrel For Use with flexible and extra-flexible copper conductors Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
