3M 3M MNG18-10FBX


Description

Industry Description

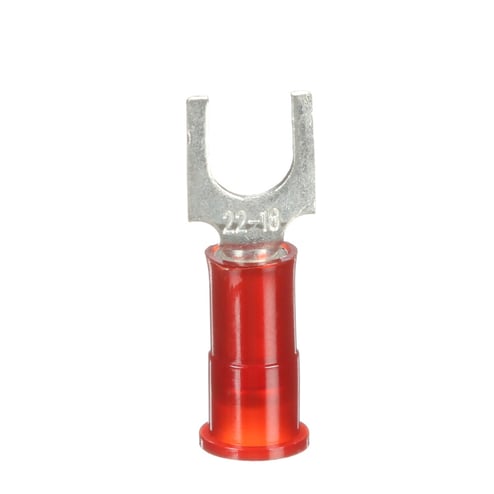

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

22-18 INS FORK TERM

AD Description

Scotchlok™ 051128-58654 Insulated Block Fork Terminal, 22 to 18 AWG Conductor, 0.84 in L, Butted Seam Barrel, Copper, Red

Vendor Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.

Specifications

Brand Name
3M
Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Label_Description
BLOCK FORK NYLON INSULATED, 100/BOTTLE
Material
Copper
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • Abrasion and corrosion resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Red nylon-insulated grip, butted seam barrel ensures a secure fit and offers reliable performance
Standard
UL and CSA
Stud_Size
#10
Sub_Brand
3M
Terminal_Size
22 - 18 AWG
Type
Insulated Block
Voltage Rating
600/1000 VAC
