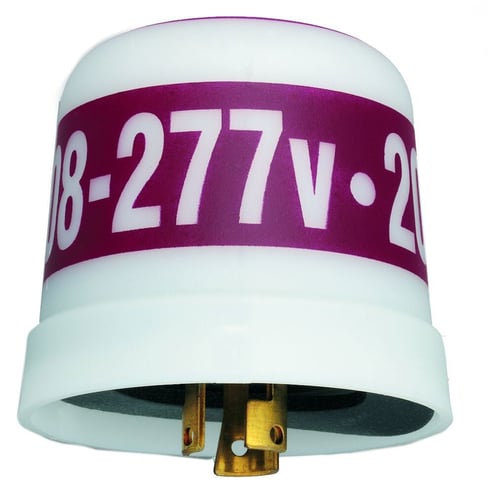

Intermatic Intermatic LC4523LA

Industry Description

The 208-277 V 50/60 Hz. 1700-2300 Watt "T" w/Lightning Arrestor Locking Type The LC4500 Series Photo Controls feature low cost locking-type mounting, and thermal-type controls for street lighting and other applications requiring a twist and lock type plug connection. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and polypropylene case to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes.

Modified Industry Description

1700/2300W 208/277V - T PHOTOCELL TURN LOCK

AD Description

Intermatic® LC4523LA LC4500 Locking Mounting Thermal Photocontrol, 208 to 277 VAC, 3120 to 4155 W Tungsten, 1700 to 2300 VA Ballast, Twist-Lock Mount, Polypropylene

Vendor Description

The LC4500 series photo controls feature low cost locking-type mounting and thermal type controls for street lighting and other applications requiring a twist and lock type plug connection. Thermal type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal type controls feature a cadmium sulfide photocell and polypropylene case to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes.
