Killark Killark VP6475


Description

Industry Description

VP SERIES - ALUMINUM 60 AMP STYLE I PLUG - 4W 4P CIRCUIT

AD Description

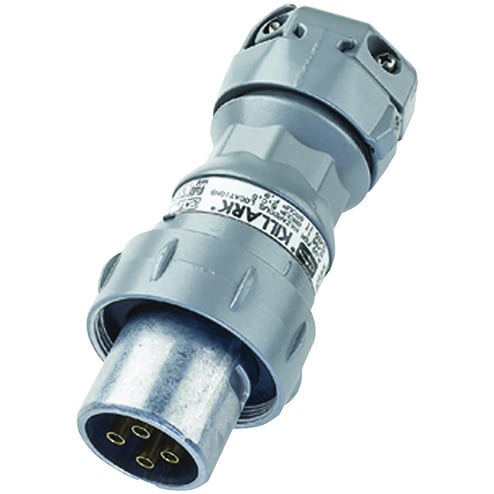

Killark® VERSAMATE® VP6475 3-Phase Explosionproof Heavy Duty Metallic Pin and Sleeve Plug, 600 VAC/250 VDC, 60 A, 4 Poles, 4 Wires, Gray

Vendor Description

VERSAMATE® metallic pin and sleeve plugs and receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. The VERSAMATE® product line includes 30, 60, 100 and 200 A plugs, receptacles and connectors with a full range of back boxes. Popular options include reverse service and polarization. The VERSAMATE® line is fully interchangeable with UL1686 configured and listed devices such as Crouse-Hinds® Arktite® or Appleton® Powertite®. Standard location receptacle bolt hole patterns match competitive back boxes so users can upgrade to VERSAMATE® without changing back boxes in instances where changing the conduit system is difficult.

Specifications

Amperage Rating
60
Application
VERSAMATE metallic pin and sleeve plugs are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indo
Color
Gray
Conductor Size
Regular stranding: #6-#4; extra flex: #6-#5
Country of Origin
US
Environmental_Conditions
Wet and hazardous locations
Length1
9.2500
Material
Copper-Free Aluminum
NEMA_Rating
NEMA 3, 4, 4X, 7BCD, 9FG
Number_Of_Poles
4
Phase
3
Series
VersaMate
Size
3-11/16 H X 3-11/16 W X 9.3 L
Special Features

  • 0.65 to 1.5 in grommet range
  • Clamps provide a firm fit for one plug over a wide range of cable diameters
  • Contacts are brass with a patented beryllium copper spring tensioner
  • Copper-free aluminum construction with electrostatically applied epoxy/polyester finish
  • External screws are 316 stainless steel
  • Ground style I
  • Increased safety type box terminals
  • Insulators have high mechanical and dielectric strength and low arc tracking
  • Octagonal style (patented) for a firm and sure grip when connecting or disconnecting is featured on both plug and cable connector bodies
Standard
UL, CSA
Sub_Brand
VERSAMATE
Type
Aluminum NEMA 4X metallic plug
Voltage Rating
600//250
