3M 3M ITCSN-0800-6


Description

Industry Description

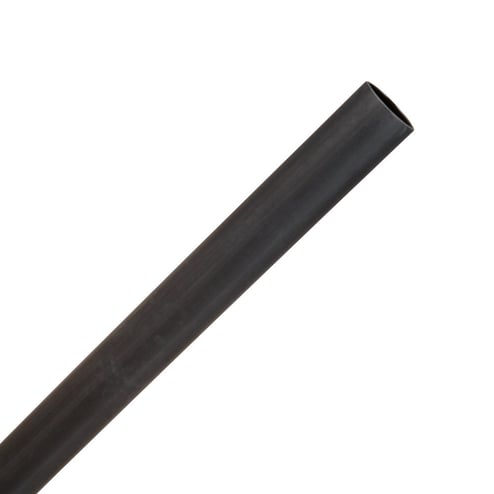

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Modified Industry Description

0.8, 3:1 Heavy Wall Tubing, 6 IN Black, UL486D, 100 Pcs

Specifications

Brand Name
3M
Color
Black
Continuous_Operating_Temperature
110 degrees - 230 degrees
Country of Origin
US
Dielectric_Strength
500
Heat_Shock
No dripping, flowing, cracking
Inside_Diameter
.80
Label_Description
3M(TM) HEAT SHRINK HEAVY-WALL CABLE SLEEVE FOR 1KV ITCSN-0800-6-BULK, 8-1/0 AWG, EXPANDED/RECOVERED I.D. 0.80/0.20 IN, 6 IN LENGTH, 100 PER CASE
Low_Temperature_Flexibility
No Cracking
Material
Cross Linked Polyolefin
Minimum_Shrink_Temperature
250 degrees
Package_Quantity
100
Shrink_Ratio
0.125694444444444
Shrink_Temperature
250 deg F
Special Features

  • 2400 psi tensile strength
  • 475% elongation
  • 500 V/mil dielectric strength
  • Acids and alkalis UV-resistant
  • Bonds to a wide variety of substrates
  • Designed to provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection
  • Fast shrinking to provide rapid installation
  • Ideal for physical protection and moisture sealing of high voltage air insulated connectors and lugs, such as lug connections to bus bars
  • Reliable and proven
  • Rugged weather resistant protection
  • Thick wall top resists puncture and abrasion damage
  • Versatile, a minimum number of sizes cover the entire range of applications
Standard
UL, CSA
Sub_Brand
3M
Type
Adhesive Lined Direct Bury
Voltage Rating
600/1000 VAC
Volume_Resistivity
1 x 10(14) ohm/cm
