Burndy Burndy YA6CA1


Description

Industry Description

Aluminum Compression Lug, 1 Hole w/o Inspection Window, 6 AWG, 1/4" Stud, Al/Cu Rated, Tin Plated.

AD Description

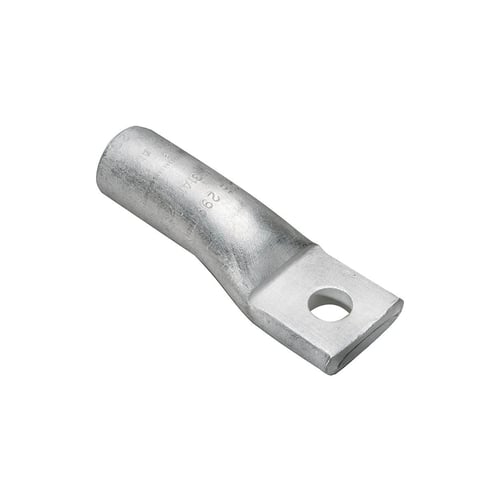

BURNDY® HYLUG YA6CA1 YA-A 1-Hole Dual Rated Non-Insulated Compression Lug, 6 AWG Aluminum/Stranded Copper Conductor, Die Code: 346, 1/4 in Stud, Aluminum

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
Wire Termination
Country of Origin
US
Length1
1.8700
Material
Aluminum
Special Features

  • 0.33 in hole center to end, 0.42 in hole center to barrel
  • Color coded end caps inserted in barrel end
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Electro tin plated
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (1) U6CABT die, Y46 tool, (1) U6CABT die With PUADP-1 adapter, dieless tools (number of crimps): mechanical: (1) MY29-3, MRC840AL tool, hydraulic hypress: (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY644M tool, die index: 346 installation tool
  • Internally beveled barrel
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Provides a quality electrical dual connection
  • Provides durable long lasting corrosion resistance
  • Provides easy cable insertion
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • Straight tongue angle
  • They are designed for heavy duty applications to 35 kV
  • Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil
  • Used for MY29-3, MRC840AL, MY644M, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers
  • YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
YA-A, Dual Rated
Voltage Rating
35,000
