Hoffman Hoffman PPT85
Hoffman PPT85
Kirby Risk #: 1786977
UPC: 78351020319, 783510203191, 00783510203191
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
Pagoda Tops, fits 800x500mm, Lt Gray, Steel
Modified Industry Description
PAGODA TOP, FITS 800X500MM
AD Description

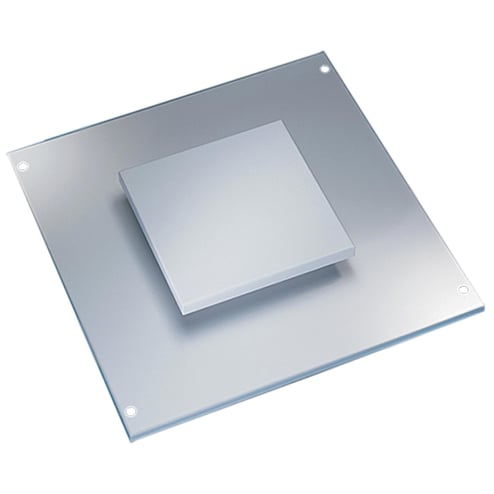

Hoffman PPT85 P20 Single Bay Pagoda Top, For Use With ProLine™ 800 mm W x 500 mm D-Frame Top, Steel, Light Gray
Vendor Description
Pagoda Tops are available to fit on standard frames. Design features a drip-proof raised pagoda vent with a 115-volt integral axial exhaust fan. Double-bay Pagoda Tops have one drip-proof raised pagoda vent opening positioned over one bay that can be oriented for right or left ventilation. Pagoda Tops are finished with RAL 7035 textured light-gray polyester powder paint. Bolts secure pagoda top to frame (lifting eyes can be used instead of bolts).
Specifications
| Application |
Controls and Drives; Power Distribution
|
|---|---|
| Color |
Light Gray
|
| Country of Origin |
MX
|
| Dimensions |
31.17 in W x 19.64 in D
|
| Finish |
Polyester Powder Coated
|
| Length1 |
33.0000
|
| Material |
Steel
|
| Series |
P20
|
| Size |
fits 800X500mm
|
| Special Features |
|
| Standard |
This component is rated UL Type 1. Installing this component on an enclosure brings the enclosure rating to UL Type 1.
|
| Sub_Brand |
ProLine
|
| Type |
Single Bay
|
