SolaHD SolaHD HT1F6AS
SolaHD HT1F6AS
Kirby Risk #: 1786519
UPC: 78347212130, 00783472121304, 783472121304
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Transformers, Low Voltage, Three Phase, Shielded, KVA Rating: 6 KVA, Taps: 115 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type: 13.0 Height x 16.0 Width x 9.0 Depth Inch
Modified Industry Description
6KVA NON VENTILATED AUTOMATION TRANSFORMER, 480V DELTA PRIMARY, 208Y/120V SECONDARY
AD Description

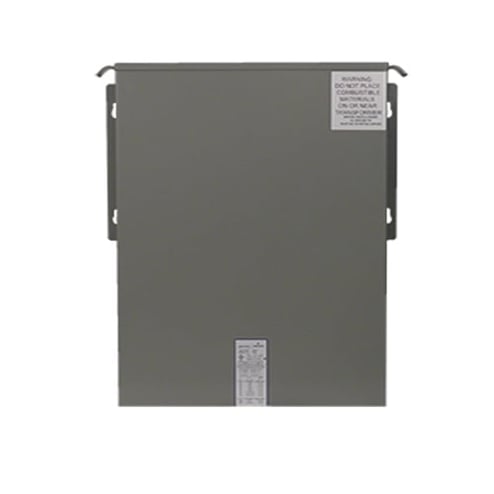

SolaHD HT1F6AS Encapsulated Non-Ventilated Automation Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 6 kVA Power Rating, 60 Hz, 3 Phase
Vendor Description
SolaHD encapsulated transformers are rated for hazardous locations as well as harsh industrial environments. Encapsulation and rugged UL listed/NEMA type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the national electric code for class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Connection |
Copper lead wire terminations
|
| Country of Origin |
US
|
| Enclosure |
NEMA 3R
|
| Frequency_Rating |
60
|
| Insulation |
200
|
| KVA_Rating |
6
|
| Maximum_Amperage_Rating |
7.2/16.6
|
| Maximum_Input_Current |
3.6
|
| Maximum_Output_Current |
8.3
|
| Number_Of_Channels |
480 ? Primary
|
| Phase |
3
|
| Power_Rating |
6
|
| Primary_Voltage |
480
|
| Processor |
208Y/120 Secondary
|
| Secondary_Voltage |
208/120
|
| Special Features |
|
| Standard |
cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66
|
| Sub_Brand |
SolaHD
|
| Type |
Non-Ventilated Encapsulated
|
| Wattage |
3
|
