O-Z/Gedney O-Z/Gedney KC50
O-Z/Gedney KC50
Kirby Risk #: 1786312
UPC: 00783126314106, 783126314106, 78312631410
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

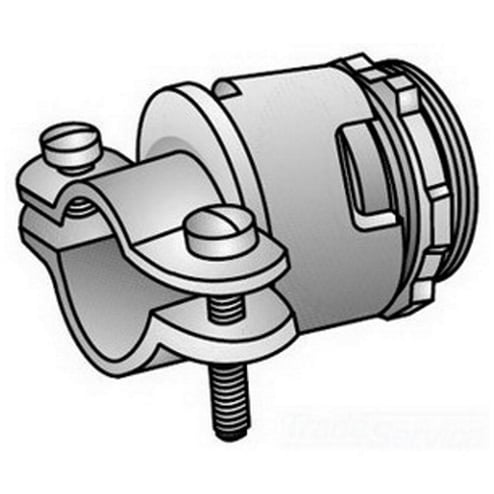

OZ-Gedney Type KC Center Stopped 2-Screw Clamp Connector, Size: 1/2 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 1/2 - 29/32 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 1-9/16 IN Length X 1-7/8 IN Width, Third Party C
Modified Industry Description
1/2 IN 2 SCREW CONN
Specifications
| Application |
For Armored Cable, Flexible Metal Conduit, Interlocked Metal Clad Cables, Non-Metallic And Service Entrance Cable
|
|---|---|
| Connection |
Male NPS Hub X Screw Clamp
|
| Country of Origin |
MX
|
| Dimensions |
1-9/16 in L x 1-7/8 in W
|
| Finish |
Zinc Electroplated
|
| Length1 |
8.1000
|
| Material |
Malleable Iron
|
| Size |
1/2
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-11852, CSA 9795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1
|
| Type |
Type KC
|
