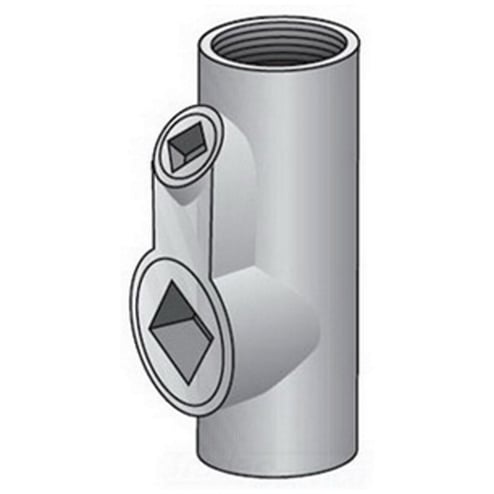

O-Z/Gedney O-Z/Gedney EYA150


Description

Industry Description

OZ-Gedney Type EYA Vertical/Horizontal Sealing Fitting, Size: 1-1/2 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Tapered FNPT, Dimensions: 2 IN Body Diameter X 5-1/2 IN Overall Length, 2-1/4 IN Turning Radius, 9 OZ Sealing Compound Required, 1/2 OZ Approximate Amount Of Fiber/Hub Required, Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675, For Rigid Conduit Or IMC

Modified Industry Description

1-1/2 IN HOR/VERT SEALING FTG

Specifications

Application
For Rigid Conduit Or IMC
Connection
Tapered FNPT
Country of Origin
MX
Dimensions
2 in Dia x 5-1/2 in L
Finish
Zinc Electroplated
Length1
7.7000
Material
Malleable Iron
Size
1-1/2
Special Features

  • Explosion proof, dust-ignition proof
  • To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
  • To seal conduits in vertical or horizontal runs
Standard
Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675
Type
Type EYA Vertical/Horizontal
