3M 3M 804
3M 804
Kirby Risk #: 1778134
UPC: 00054007061342, 054007061342, 05400706134, 50076308924589
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

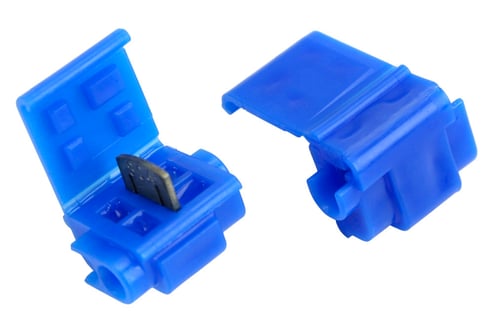

3M™ Scotchlok™ Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self stripping and offers a moisture resistant seal.
Modified Industry Description
Moisture Resistant Tap Connector
AD Description
Scotchlok™ 804-BOX Flame Retardant Moisture Resistant Self-Stripping Tap Connector, 14 AWG (Tap)/18 to 16 AWG (Run) Stranded Wire, Tin Plated Brass
Vendor Description
Keep moisture out of mid-span connections with this 3Mâ„¢ Scotchlokâ„¢ 804 IDC Run or Tap Electrical Connector. It uses a mineral oil base with dielectric grease to create a seal when inserting a tap into a run wire, protecting it from damp conditions, and it has a brass element plated with tin to conduct well and resist corrosion. The Scotchlok 804 is RoHS 2011/65/EU Compliant and UL Listed so you know it's a great performer. Many types of low-voltage projects benefit from using this connectors, such as control circuit, fixture, appliance and vehicle wiring, as well as PA and signal systems.
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Blue
|
| Conductor Size |
18 - 16 AWG / 14 AWG Stranded (Tap)
|
| Country of Origin |
USA
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) ELECTRICAL IDC 804, RUN AND TAP, MOISTURE RESISTANT
|
| Package_Quantity |
250
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
194
|
| Type |
Insulation Displacement
|
| Voltage Rating |
600
|
