O-Z/Gedney O-Z/Gedney 4Q-9250
O-Z/Gedney 4Q-9250
Kirby Risk #: 1777738
UPC: 783126619553, 00783126619553, 78312661955
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

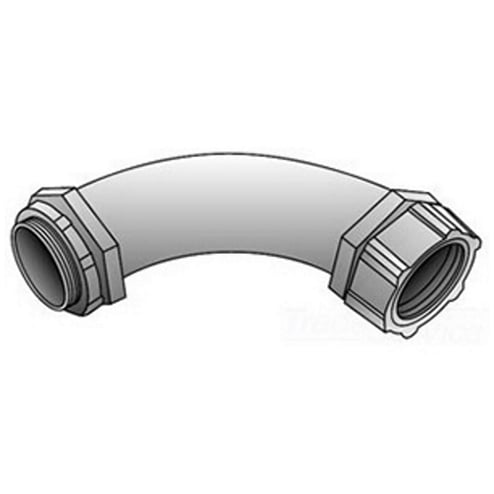

OZ-Gedney Type 4Q Liquid Tight 90 DEG Connector, Size: 2-1/2 IN, Connection: Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, 4-1/8 IN Width, Dimension A: 7-1/2 IN, Dimension D: 7-1/8 I
Modified Industry Description
2 1/2 IN 90 Degree Liquidtight Connector
Specifications
| Application |
For Liquidtight Flexible Metal Conduit
|
|---|---|
| Connection |
Tapered MNPT Hub
|
| Finish |
Zinc Electroplated
|
| Insulation |
Non Insulated
|
| Material |
Malleable Iron
|
| Standard |
Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
|
| Type |
Concretetight Liquidtight Oiltight Raintight
|
