Ideal Ideal 46-310


Description

Industry Description

IDEAL, Heat Shrinkable Tube, Thermo-Shrink®, Thin-Wall, Shrink Ratio: 2:1, Outside Diameter: 1/8 IN, Thickness: 017 IN, Length: 6 IN, Volume Resistivity: 1014 OHM CM For ASTM D 876 Test Method, Dielectric Strength: 20 KV/MM For ASTM D 150 Test Method, Continuous Operating Temperature: -55 To 125 DEG C, Minimum Shrink Temperature: 70 DEG C, Heat Shock: No cracking For UL 224(250 DEG C /4 hours), Cable Range: 24 - 20 AWG, Nominal Recoveredi.d. (max.): 063 IN, Expanded I.d. (min.): 0.146, Elongation At Break: 600 PCT For ASTM D 638 Test Method, Elongation Of Break After Aging: 350 PCT For UL 224 Test Method, Cold Bend Test (-55°c/4 Hours): No Cracking For UL 224 Test Method, Copper Corrosion: Pass For UL 224 Test Method, Chemical Resistance: Pass For UL 224 Test Method, Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method, Eccentricity: 30 PCT For UL 224 Test Method, Normal Size: 1/8 IN, Package: Bag

Modified Industry Description

HEAT SHRNK 6 IN LGTH 1 8 IN OD

AD Description

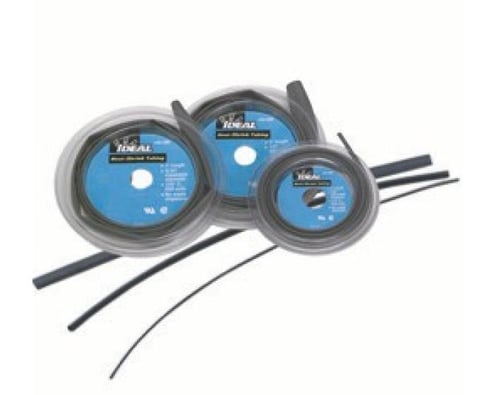

IDEAL® Thermo-Shrink® 46-310 Economy Heat Shrink Tubing, 0.146 in ID Expanded, 0.063 in ID Recovered, 0.017 in THK Wall Recovered, 6 in L, Polyolefin, Black

Specifications

Brand Name
Ideal
Continuous_Operating_Temperature
-55 To 125
Country of Origin
USA
Dielectric_Strength
20 KV/MM For ASTM D 150 Test Method
Heat_Shock
No cracking For UL 224(250 DEG C /4 hours)
Minimum_Shrink_Temperature
70
Outside_Diameter
0.125
Package_Quantity
20
Shrink_Ratio
2:1
Special Features

  • +/-5% longitudinal shrinkage
  • -55 deg C/4 hr cold blend test no cracking for UL 224 test method
  • 1/8 in normal
  • 14 Mpa tensile strength and 20 kV/mil dielectric strength
  • 30% eccentricity
  • 350% elongation of break after aging for UL 224 test method
  • 600% elongation at break for ASTM D638 test method
  • Copper corrosion and chemical resistance pass for UL 224 test method
  • It can be elongated up to 350% of the original size after aging at 175 deg C for about 168 hr
  • It has highly flame-retardant property to resist electric shock and is flexible for convenient operation
  • No PBBs and PBBEs
  • Polyolefin material electrically insulates and protects inline components, disconnect terminals and splices with its high strength and excellent resilience
  • Resistant to common fluids and solvents
  • Use to bundle wires for very flexible light duty harnesses
Standard
C/US RU Listed,RoHS
Sub_Brand
Ideal
Thickness
017
Type
Thin-Wall
Volume_Resistivity
1014 OHM CM For ASTM D 876 Test Method
