Baldor Baldor CFM3156A

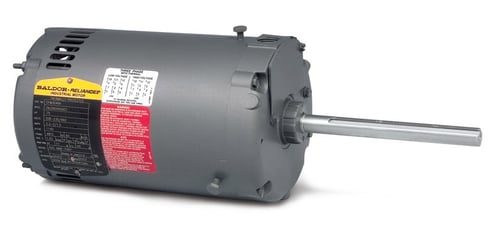

Baldor CFM3156A
Kirby Risk #: 1774821
UPC: 781568121498, 78156812149, 00781568121498
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Electric Motors, Heating and Cooling, Three Phase, Belt Drive, Motor Type: Three Phase, Horsepower: 1, RPM: 1140, Frame Size: 56YZ, Voltage Rating: 208-230/460 VAC, Frequency: 60 Hz, Rotation: Reversible, Full Load Amps: 3.6-3.4/1.7 Amp, Bearings: Ball, E
Modified Industry Description
1HP 1140RPM 3PH 60HZ 56YZ 3522M OPEN F1
Specifications
| Amperage Rating |
1.7
|
|---|---|
| Application |
General Purpose
|
| Base |
No mounting
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Efficiency |
75.5
|
| Enclosure |
OPAO
|
| Frame |
56YZ
|
| Frequency_Rating |
60
|
| Full_Load_Current |
1.7/3.4/3.6
|
| Horsepower |
1
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
56YZ
|
| Phase |
3
|
| Power_Factor |
0.69
|
| Rotation |
Reversible
|
| RPM |
1140
|
| Service_Factor |
1.15
|
| Special Features |
1HP,1140RPM,3PH,60HZ,56YZ,3524M,OPEN,F1
|
| Speed_Rating |
1,140 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
208-230/460
|
