Ge Industrial GE Industrial CR360L30302AAAZ


Description

Industry Description

Lighting Contactors, Electrically Held, Number of Poles: 3, Contact Configuration: 3 Normally Open, Contact Current Ratings: 30 Amp, Contact Voltage Ratings: 600 VAC, Coil Rating: 120 VAC, Enclosure Type: Open Type, Dimensions: 4.50 Height x 3.81 Depth x 3.06 Width Inch

AD Description

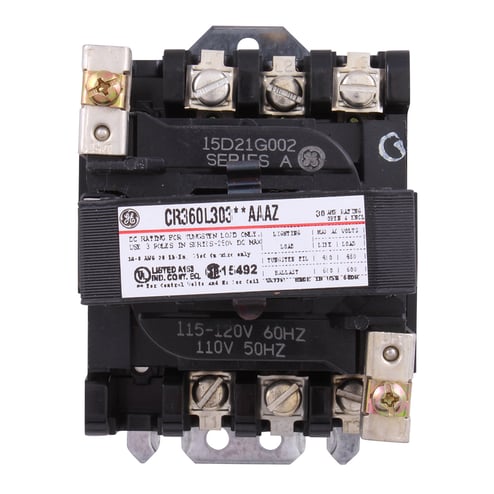

GE CR360L30302AAAZ Electrically Held Lighting Contactor, 120 VAC V Coil, 30 A, 3NO Contact, 3 Poles

Vendor Description

GE's CR360L series lighting contactors are electrically held and offer solutions for applications between 30 and 300 A. This is accomplished in five frame sizes, all built on the successful and long established NEMA starters. The ratings are established for fluorescent, mercury arc, tungsten and sodium lamp loads, covering a wide spectrum of industrial and commercial applications.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
6.0000
Special Features

  • Coils will be connected line-to-line
  • Complete list of renewal parts for field installation
  • Full selection of pilot devices, including pushbuttons, selector switches and multi-colored indicating lights wired in needed configurations
  • Generous offering of auxiliary contacts
Sub_Brand
GE Industrial Solution
Type
Contactors
