Ge Industrial GE Industrial TH3362J


Description

Industry Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type HD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism. 60/75 C conductor rating. Full cover interlocks. TH337086

AD Description

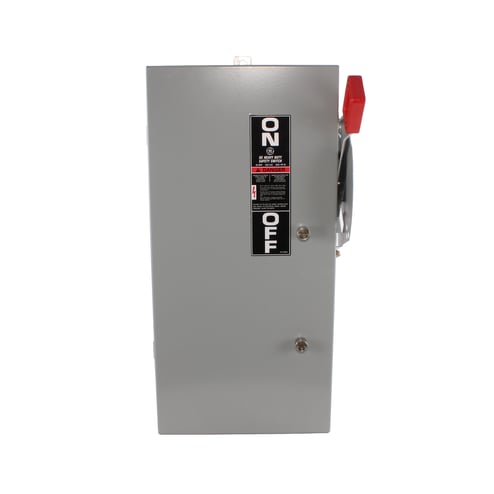

GE Spec-Setter™ TH3362J Fused Heavy Duty Safety Switch, 600 VAC, 60 A, 15 hp, 3 Poles

Vendor Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

Specifications

Amperage Rating
60
Application
Heavy
Country of Origin
UKN
Enclosure
NEMA 5, 12 Drip/Dust-tight
Length1
22.2500
Number_Of_Poles
3
Size
19.3
Special Features

  • 3-point mounting pattern speeds installation and simplifies ganging in close quarters
  • 5 hp at 125 VDC, 10 hp at 250 VDC horsepower rating
  • Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
  • Coin-proof, defeatable dual interlocks meet all safety inspection requirements
  • Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
  • Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
  • Plated blades provide visible confirmation of contact position
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
Standard
True
Voltage Rating
600
