Ge Industrial GE Industrial THQC32015WL


Description

Industry Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QC breakers are lug-lug versions of the Q Line and are available for 35mm DIN rail mounting. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. 15WL Amps 15 A 15WL2682

AD Description

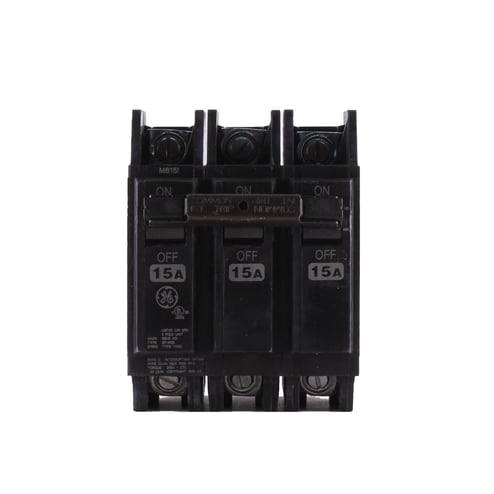

GE Q-Line® THQC32015WL Type THQC Compact Molded Case Circuit Breaker With Copper/Aluminum Line and Load Lug, 240 VAC, 15 A, 10 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Vendor Description

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QC breakers are lug-lug versions of the Q-Line® and are available for 35 mm DIN-rail mounting. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
3.7500
Special Features

  • 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
  • VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
Standard
True
Sub_Brand
GE Industrial Solution
