Ge Industrial GE Industrial TH3221


Description

Industry Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type HD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism. 60/75 C conductor rating. Full cover interlocks. TH328951

AD Description

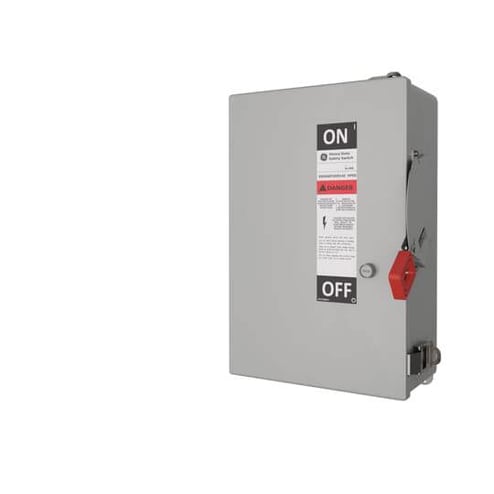

GE Spec-Setter™ TH3221 Fused Heavy Duty Safety Switch, 240 VAC, 30 A, 1-1/2 hp, 3 hp, 2 Poles

Vendor Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
11.3750
Special Features

  • 3 hp at 240 VAC time delay, 7 hp at 240 VAC time delay, 5 hp at 600 VDC horsepower rating
  • 3-point mounting pattern speeds installation and simplifies ganging in close quarters
  • Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
  • Coin-proof, defeatable dual interlocks meet all safety inspection requirements
  • Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
  • Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
  • Plated blades provide visible confirmation of contact position
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
Standard
True
Sub_Brand
GE Industrial Solution
