Ge Industrial GE Industrial TGN3323R


Description

Industry Description

Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type GD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism (30-200 amp). 60/75 C conductor rating. TGN38814

AD Description

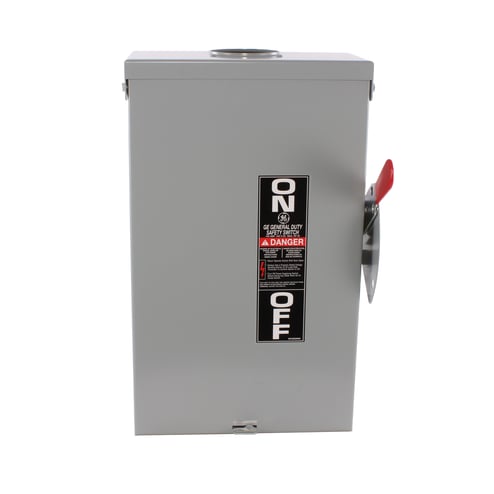

GE Spec-Setter™ TGN3323R General Duty Non-Fused Safety Switch, 240 VAC, 100 A, 15 hp Standard Fuse, 30 hp Time Delay, 3 Poles

Vendor Description

Designed for residential and light commercial applications where duty is not severe. listed to UL standard 98 enclosed and dead front switches. certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type GD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism (30 to 200 A). 60/75 deg C conductor rating.

Specifications

Amperage Rating
100
Application
Electrical distribution and Control
Country of Origin
UKN
Enclosure
NEMA 3R (Outdoor)
Length1
16.3750
Number_Of_Poles
3
Size
15.55
Special Features

  • Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indication
  • Integral cover interlock
  • Self-leveling, 3-point mounting system
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses, where applicable
  • UL listed as service entrance equipment when installed in accordance with the national electric code
  • UL listed short circuit rating is 10000 rms symmetrical amps standard
  • Visible confirmation of plated blade contact positions
  • With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
Standard
True
Sub_Brand
GE Industrial Solution
