Ge Industrial GE Industrial TG4324R


Description

Industry Description

Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type GD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism (30-200 amp). 60/75 C conductor rating. TG438685

AD Description

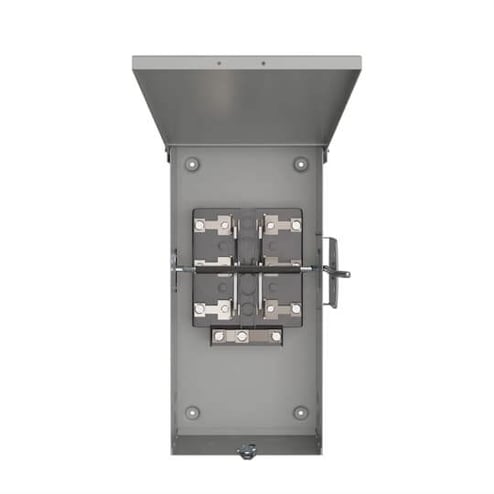

GE Spec-Setter™ TG4324R Fused General Duty Safety Switch, 240 VAC, 200 A, 15 hp Standard Fuse, 15 hp Time Delay, 3 Poles

Vendor Description

Designed for residential and light commercial applications where duty is not severe. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches - type GD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism (30 to 200 A). 60/75 deg C conductor rating.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
29.8750
Special Features

  • Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indication
  • Integral cover interlock
  • Self-leveling, 3-point mounting system
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses, where applicable
  • UL listed as service entrance equipment when installed in accordance with the national electric code
  • UL listed short circuit rating is 10000 rms symmetrical amps standard
  • Visible confirmation of plated blade contact positions
  • With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
Standard
True
Sub_Brand
GE Industrial Solution
