B-Line B-Line PV6

Name: B-Line PV6
Brand: B-Line
SKU: 1767414
Price: 462.63 USD
Availability: InStock

B-Line PV6

Kirby Risk #: 1767414

UPC: 00782051702507, 782051702507, 78205170250

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 12 VERTICAL PUSHBUTTON ENCLOSURE

Modified Industry Description

ENCLOSURE

AD Description

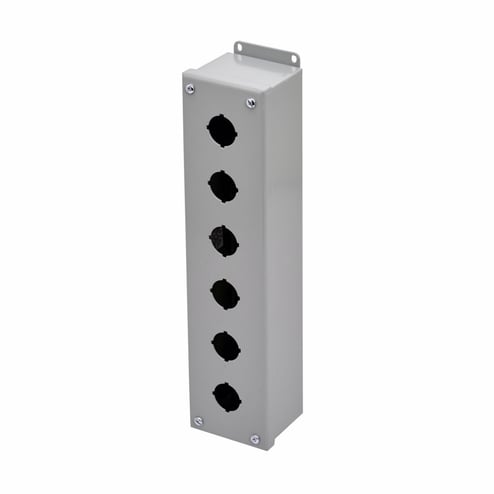

B-Line PV6 6-Hole Oil-Tight Standard Vertical Column Pushbutton Enclosure With Captive Screw, 3-1/4 in W x 2-3/4 in D, NEMA 4X/12/13/IP65, Steel

Application	Standard Oil-Tight Pushbutton, Pilot Light, Switch
Brand Name	B-Line
Color	Gray
Country of Origin	US
Cover_Type	Screw
Material	Steel
Mounting	Wall, Feet
NEMA_Rating	NEMA 4X/12/13/IP65
Number_Of_Holes	6
Series	PV Series
Size	3.25 In Width X 2.75 In Depth X 14.75 In Height
Special Features	All continuous welded seams are finished smooth Cover has a fixed oil resistant gasket Cover has concealed, detachable hinges which allow for quick removal and can be hinged ON either side Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes External mounting feet are provided for secure wall mounting Weldnut in body of enclosure for grounding
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	6-Hole Oil-Tight Standard Vertical Column
Width_2	3.2790
