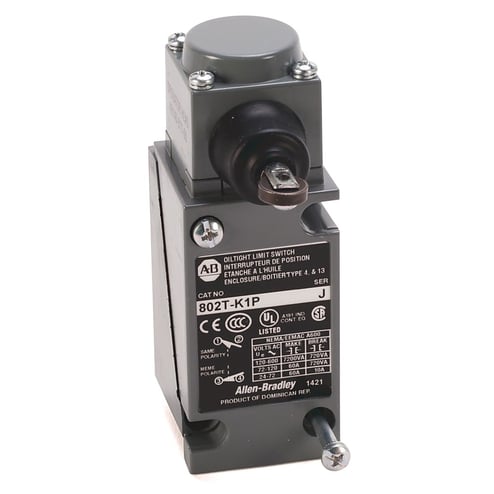

Allen-Bradley Allen-Bradley 802T-K1P1
Allen-Bradley 802T-K1P1
Kirby Risk #: 12942
UPC: 66246808006, 10662468080061, 662468080064, 00662468080064
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description
Plug-In Oiltight Limit Switch,Metal,10 A Standard Energy,Horizontal Side Push Roller,2 Circuits,Standard Contacts,1 Normally Open Contact,1 Normally Closed Contact,Standard Low Temprature, -18°C,110 °C High Temp Limit,Snap Acting,Push Accuation,Spring Return,Switch Body,NEMA Style Standard Mounting,Not Direct Acting,802T Plug-in Style,3.7 lb in,3.3 mm,1.3 mm,A600,288
Modified Industry Description
METAL PLUG-IN OILTIGHT LIMIT SWITCH
Specifications
| Action |
Snap Acting,Standard Contacts
|
|---|---|
| Actuator |
Horizontal Side Push Roller
|
| Application |
Switch Body
|
| Connection |
Connector Type Not Applicable,Not Applicable,Number of Pins Not Applicable,Cable Length Not Applicable
|
| Country of Origin |
DO
|
| Enclosure |
Metal
|
| Length1 |
4.7500
|
| Mounting |
NEMA Style Standard Mounting
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
Standard Low Temprature, -18°C,110 °C High Temp Limit
|
| Size |
802T Plug-in Style
|
| Special Features |
Indicator Config - Not Appli
|
| Standard |
KC
|
| Type |
Plug-In Oiltight Limit Switch
|
| Voltage Rating |
10 A Standard Energy
|
